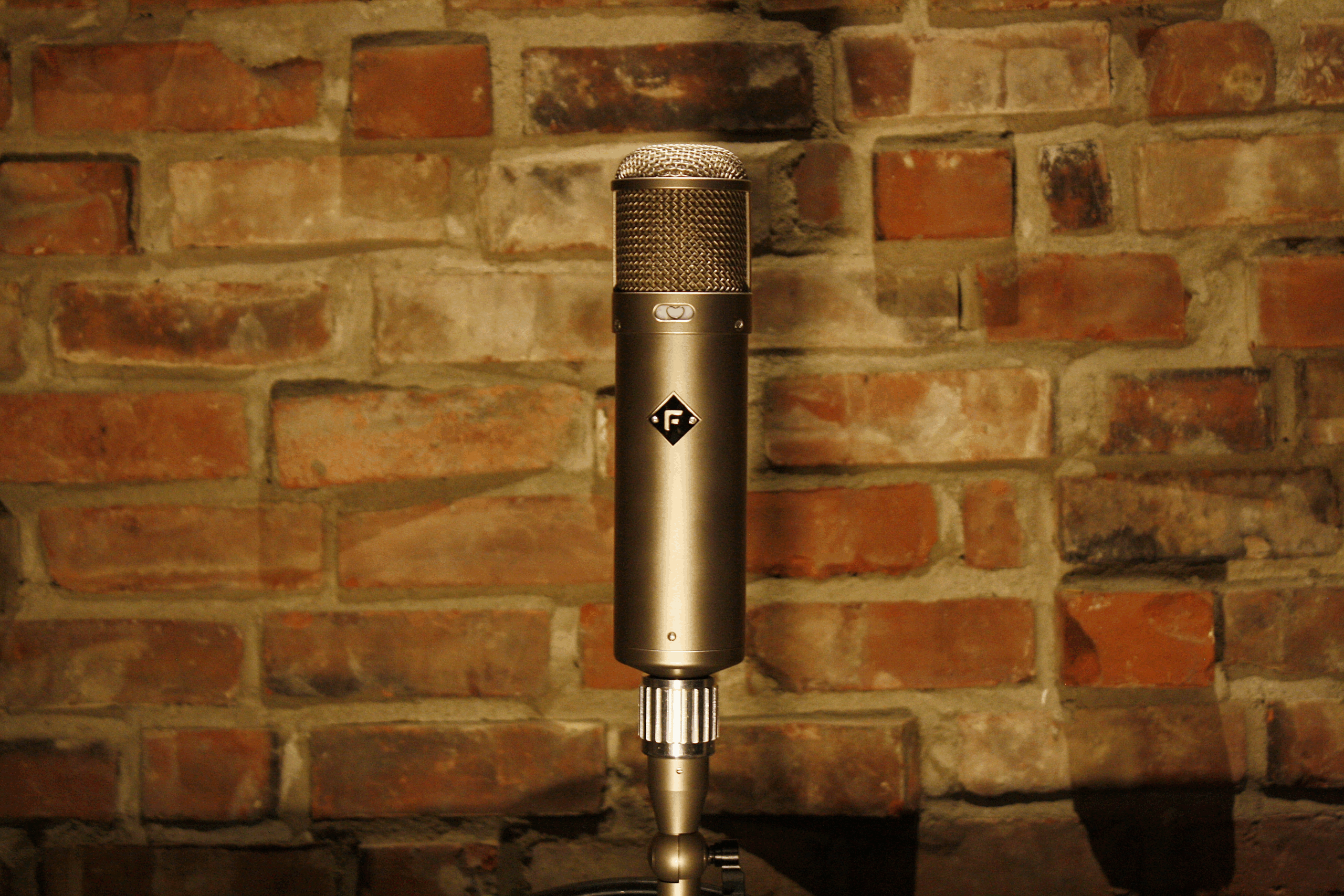

DB7 Vintage Microphone
Experience the U47 Sound
Discover the DB7 by Fortin. Handcrafted in Canada, this microphone combines traditional craftsmanship with cutting-edge technology to deliver the timeless U47 sound.
The Build

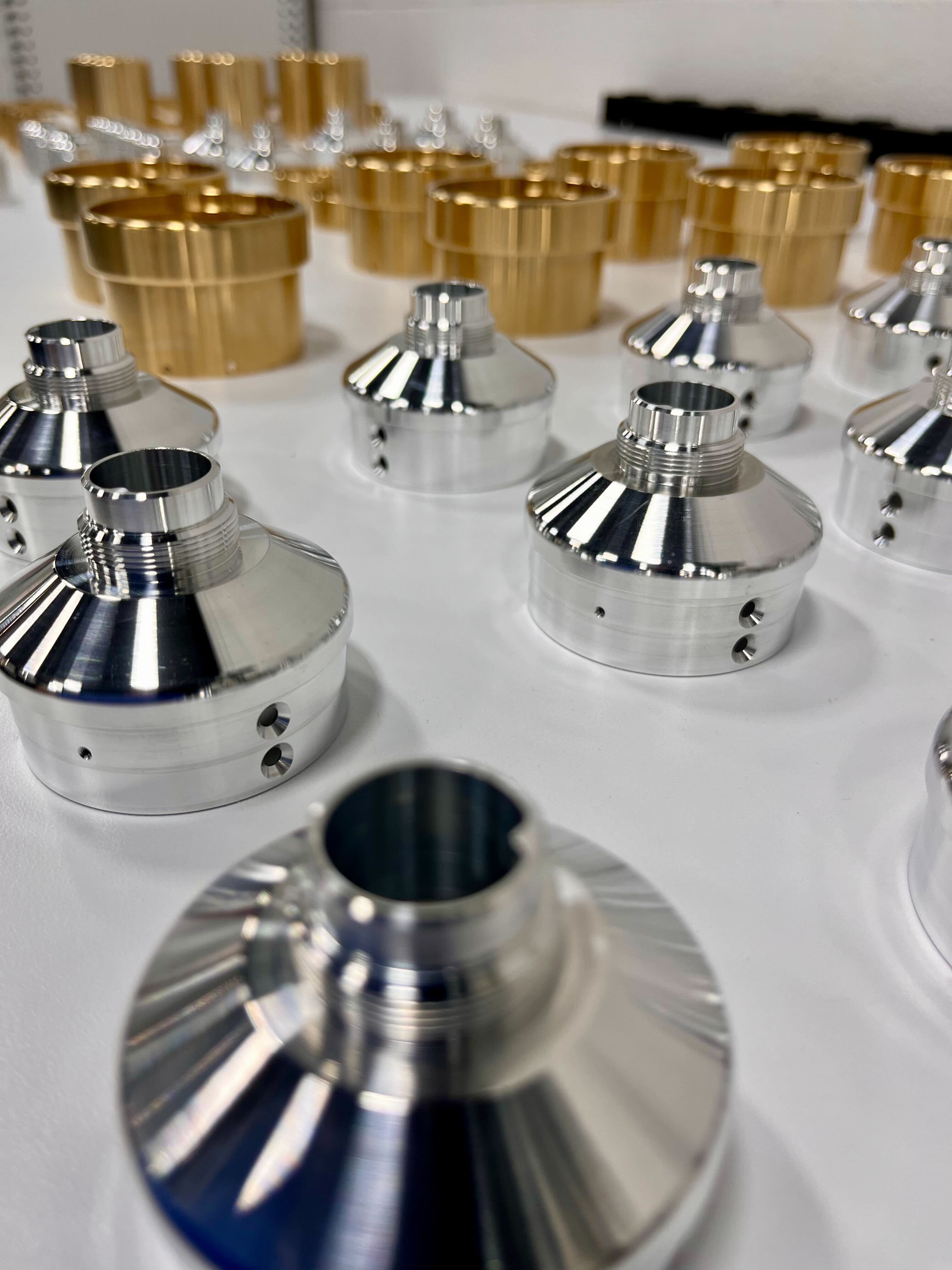

Handcrafted Precision and Durability
The Fortin DB7 Vintage Microphone is meticulously handcrafted in Canada using aerospace-grade aluminum for exceptional strength and acoustic integrity. Its nickel-plated finish adds a polished look and protects the microphone from wear over time.
- Handcrafted in Canada
- Aerospace-grade aluminum body
- Nickel-plated finish for durability
The Capsule
Handcrafted Capsules — Made In-House
At Fortin, we take pride in being the exclusive manufacturer of the capsules used in our microphones. Every M7 capsule in the DB7 is handcrafted in our Canadian workshop by skilled artisans dedicated to precision and quality. This in-house capsule production ensures every DB7 delivers the rich, warm tones and exceptional clarity that define the legendary U47 sound — exactly as intended by the original design.
- 100% handmade M7 capsules
- Crafted with precision at Fortin Microphones
- Guarantees superior consistency and authentic vintage tone
The Emulator
The VF14E Emulator: A Modern Solution
The VF14 vacuum tube is a rare and expensive component that gives the original U47 its unique tonal character. Fortin's state-of-the-art VF14E emulator replicates these sound characteristics, ensuring the DB7 delivers the authentic tone of the original U47 — without the cost or fragility of NOS tubes.

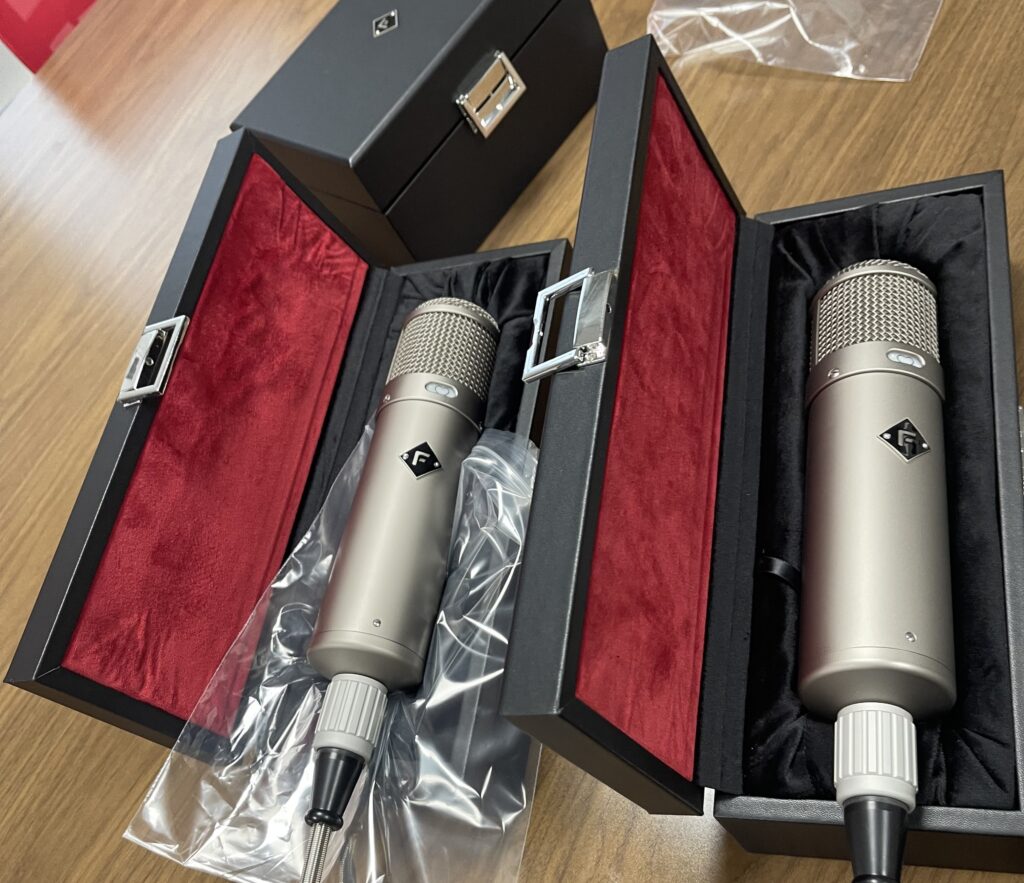

Matched Pair Option for Stereo Recording
For engineers seeking perfect stereo imaging, the DB7 is also available as a factory-matched pair. Each pair is hand-tested and calibrated to ensure identical frequency response and sensitivity, making them ideal for drum overheads, orchestral recording, and other stereo applications.
Specifications
DB7 — Technical Specifications
Capsule
- Type
- M7
- Acoustic Principle
- Pressure Gradient
- Polar Patterns
- Omni, Cardioid
Electrical
- Frequency Response
- 30 Hz – 18 kHz
- Sensitivity
- 25 mV/Pa
- Max SPL
- 125 dB
- Nominal Impedance
- 200 Ω
- Recommended Load Impedance
- 1000 Ω
- Audio Transformer
- BV8 (custom)
- Preamplifier
- VF14E Solid State Emulator
- Plate Voltage
- 60 V
- Plate Current
- ≤ 1 mA
- Heater Voltage
- 36 V
- Heater Current
- ≤ 200 mA
- Tube Warm-up Time
- 0 minutes
Physical
- Weight
- 730 g
- Diameter
- 60 mm
- Length
- 250 mm
- Cable
- 8 m Sommer cable
- Connectors
- Binder M25 7-pin / XLR 3F
Chassis
- Body
- Aerospace-grade aluminum and brass
- Finish
- Nickel-plated, hand-brazed in Canada
Power
- Power Supply
- AC 120 V
Operating Conditions
- Operating Temperature
- 0 °C to +50 °C
- Operating Humidity
- 0% to 70% RH
- Storage Temperature
- –20 °C to +75 °C
- Storage Humidity
- 0% to 90% RH
Kit Contents
DB7 microphone, audio cable, analog power supply, 120V power cord, shock mount, protective case, vintage carrying case.
